Claude Code Cloud Agents

Integration Overview

Use this integration to capture Claude Code cloud-agent activity and upload each session log to your own Google Cloud Storage bucket. It is meant for testing cloud-agent telemetry without running a hosted Asymptote backend. This flow depends on the Beacon CLI. You run beacon cloud commands from your workstation to create the GCS upload path, print Claude environment variables, and generate the setup script that runs inside the Claude cloud sandbox.

If you’re interested in leveraging this telemetry ingest across your enterprise, Asymptote Managed is designed for production cloud-agent telemetry ingest at scale.

Overview

Claude Code Cloud Agents run in Anthropic’s cloud environment, so Beacon cannot use the long-running endpoint agent that local installs use. Instead, the setup script installs Beacon hooks inside the sandbox. During a cloud-agent session, those hooks write /tmp/beacon/runtime.jsonl; at the end of the session, Beacon uploads that file to GCS. The setup has three parts:

Create a dedicated GCS bucket and uploader service account with Beacon.
Add Beacon cloud telemetry environment variables to the Claude Code cloud environment.
Paste a Beacon-generated setup script into the Claude cloud environment.

Each Claude Code cloud agent session writes one readable JSONL object:

gs://<bucket>/<prefix>/provider=claude_code_web/user_id=<user_id>/run_id=<claude_session_id>/runtime.jsonl

Prerequisites

Beacon CLI v0.0.51 or later.
gcloud installed and authenticated to the Google Cloud project you will use for telemetry storage.
A Google Cloud project where you can create buckets, service accounts, IAM bindings, and service account keys.
Claude Code cloud agent access for the repository you want to test.
A Claude cloud environment with outbound access to:
- oauth2.googleapis.com
- storage.googleapis.com
- github.com
- *.githubusercontent.com

Install or upgrade Beacon before you start:

brew tap asymptote-labs/tap
brew install beacon
brew upgrade beacon
beacon version

Authenticate gcloud and select your project:

gcloud auth login
gcloud config set project <your-gcp-project>

1. Create the GCS Upload Path

From your workstation, choose a bucket and prefix:

export GCP_PROJECT="your-gcp-project"
export BEACON_TEST_BUCKET="your-beacon-cloud-agent-traces"
export BEACON_CLOUD_GCS_PREFIX="agent-traces/customer=my-team"

Review the GCP changes Beacon will make:

beacon cloud gcs setup \
  --project "$GCP_PROJECT" \
  --bucket "$BEACON_TEST_BUCKET" \
  --location us-central1 \
  --prefix "$BEACON_CLOUD_GCS_PREFIX" \
  --service-account beacon-cloud-trace-uploader \
  --print

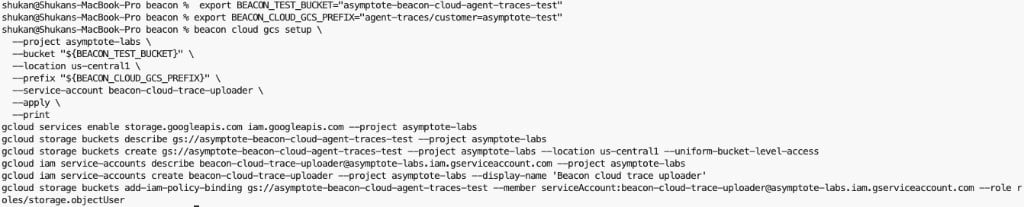

Terminal showing beacon cloud gcs setup --print output with gcloud commands for creating the bucket, service account, and IAM binding. — Review the bucket, service account, and IAM commands before applying them.

Apply the setup and print the Claude environment variables:

beacon cloud gcs setup \
  --project "$GCP_PROJECT" \
  --bucket "$BEACON_TEST_BUCKET" \
  --location us-central1 \
  --prefix "$BEACON_CLOUD_GCS_PREFIX" \
  --service-account beacon-cloud-trace-uploader \
  --apply \
  --print-env

Copy the printed values. Redact BEACON_CLOUD_GCS_CREDENTIALS_B64 anywhere you share screenshots or logs.

Terminal showing beacon cloud gcs setup --apply --print-env output with bucket, prefix, and credentials environment variables. — Copy the printed BEACON_CLOUD_GCS_* variables into the Claude cloud environment.

The helper creates a dedicated uploader service account and grants it object upload access to the selected bucket.

2. Configure Claude Code Cloud Agents

Open the Claude Code web application and select the cloud environment for your repository.

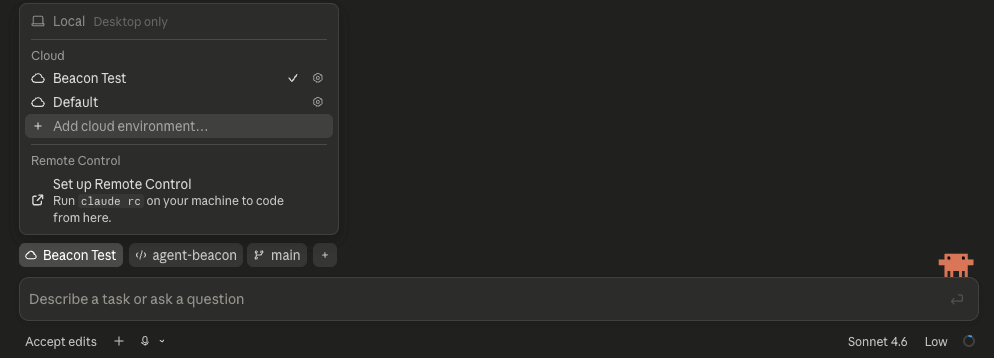

Claude Code cloud environment selector showing a Beacon Test cloud environment selected. — Select or create the Claude cloud environment that should run Beacon telemetry hooks.

Set network access to Custom and allow:

oauth2.googleapis.com
storage.googleapis.com
github.com
*.githubusercontent.com

Add these environment variables:

BEACON_ORIGIN=cloud
BEACON_RUN_PROVIDER=claude_code_web
BEACON_RUN_EPHEMERAL=true
BEACON_CLOUD_USER_ID_HASH=<stable-user-or-test-id>
BEACON_CLOUD_GCS_BUCKET=<bucket-from-setup>
BEACON_CLOUD_GCS_PREFIX=<prefix-from-setup>
BEACON_CLOUD_GCS_CREDENTIALS_B64=<base64-service-account-json>

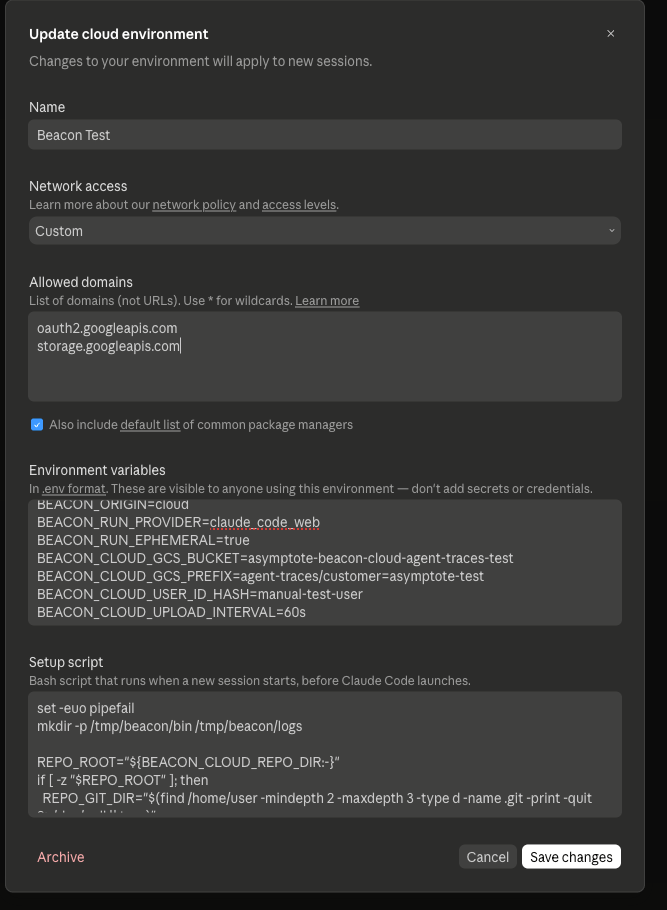

Claude Code cloud environment settings showing custom network domains, Beacon environment variables, and a setup script. — Configure network access, Beacon metadata, GCS bucket settings, and the setup script in the Claude cloud environment.

3. Add the Setup Script

Generate the setup script for your Beacon release:

beacon cloud claude-web print-setup --version v0.0.95

Paste the generated script into the Claude environment Setup script field. The script:

installs beacon and beacon-hooks in /tmp/beacon/bin,
finds the cloud sandbox repository root,
writes .claude/settings.local.json inside the sandbox clone,
excludes generated Claude settings from git commits.

If you are testing unreleased Beacon changes from a branch, build beacon and beacon-hooks from that branch in the setup script instead of using print-setup --version.

4. Run a Cloud Agent Task

Start a Claude Code cloud agent task that uses tools. You can start the task from the Claude app on your phone or from the Claude Code web application. For example:

Read the README, run pwd && ls, create a tiny temporary markdown note under /tmp or in the repo, then summarize what you did.

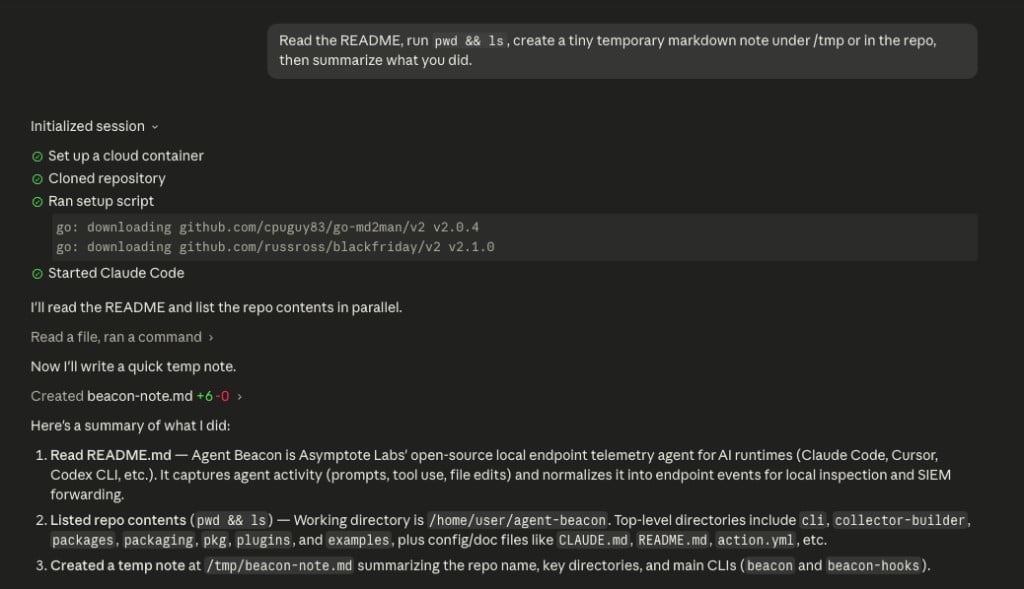

Claude Code cloud agent session showing setup completed, a README task, shell command activity, and a temporary note creation. — A successful Claude Code cloud agent session runs the setup script, starts Claude Code, and produces normal agent activity.

5. Verify GCS Upload

List the uploaded session objects:

gcloud storage ls --recursive "gs://${BEACON_TEST_BUCKET}/${BEACON_CLOUD_GCS_PREFIX}/"

You should see a path like:

provider=claude_code_web/user_id=<user_id>/run_id=cse_.../runtime.jsonl

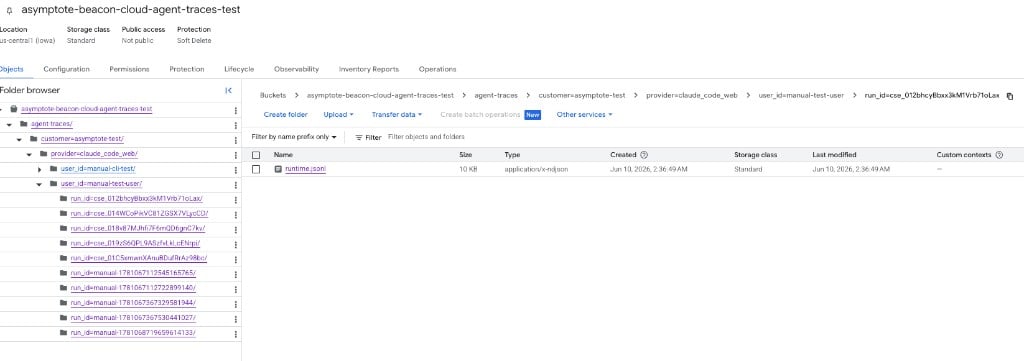

Google Cloud Storage object browser showing Beacon cloud agent traces partitioned by provider, user ID, Claude run ID, and runtime.jsonl. — Beacon uploads one readable runtime.jsonl object per Claude Code cloud agent session.

Inspect the log:

gcloud storage cat "gs://${BEACON_TEST_BUCKET}/${BEACON_CLOUD_GCS_PREFIX}/provider=claude_code_web/user_id=<user_id>/run_id=<run_id>/runtime.jsonl" | head

Expected fields include:

vendor=beacon
product=endpoint-agent
schema_version=1.0
origin=cloud
harness.name=claude
run.provider=claude_code_web
run.run_id=cse_...

Security Note

The self-serve GCS flow above creates a dedicated service account scoped to object uploads for one bucket, then stores its credentials in the Claude Code environment. This is useful for proof-of-concept testing, but treat that environment variable as a sensitive credential. Claude notes that cloud environment variables are visible to users of that environment and recommends avoiding secrets there when possible. Avoid broad credentials and review access before using this flow with sensitive telemetry.

Troubleshooting

The bucket is empty

Confirm the Claude setup script ran and generated hooks:

ls -la .claude
sed -n '1,120p' .claude/settings.local.json

Confirm hooks wrote telemetry:

ls -l /tmp/beacon/runtime.jsonl
head /tmp/beacon/runtime.jsonl

If runtime.jsonl exists but GCS is empty, check network access and GCS credentials. The cloud sandbox must reach both oauth2.googleapis.com and storage.googleapis.com.

Claude tries to commit hook settings

The setup script should write .claude/settings.local.json, not .claude/settings.json. settings.local.json is intended for local or sandbox-specific configuration and should stay out of commits.
